Notifications are an important part of monitoring of a MikroTik router’s health, performance and different events, including potential security issues.
Telegram is a popular messaging app that offers a variety of features, including notifications.
It can be used to receive notifications from various sources, including MikroTik.
This post provides a step-by-step guide on how to configure MikroTik to send messages to Telegram and integrate it into MikroTik scripts.
Cool Tip: How to send messages form a Linux command-line through a Telegram API! Create your personal notification bot! Read more →
Send Message to Telegram from MikroTik
A quick message can be sent from MikroTik to Telegram, as follows:
[admin@MikroTik] > /tool fetch keep-result=no url="https://api.telegram.org/bot<tgBotToken>/sendMessage\?chat_id=<tgChatID>&text=<message>" - example - [admin@MikroTik] > /tool fetch keep-result=no url="https://api.telegram.org/bot0123456789:ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghi/sendMessage\?chat_id=012345678&text=Hey%20Telegram!%20Hello%20from%20MikroTik!"
Sending a message from MikroTik:

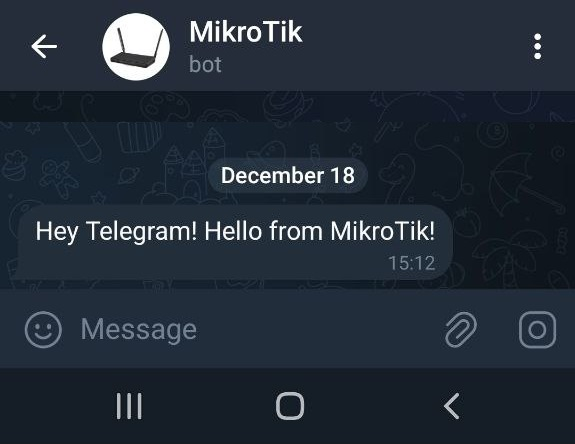

Receiving a message in Telegram:
MikroTik Telegram Script
If you plan to send messages to Telegram from MikroTik scripts, I would recommend to create a special function for this, let’s say $tgSendMessage and store it as a :global environment variable from where it can be called by the other scripts.
Create a script named telegram-config-global and open it in an editor:
[admin@MikroTik] > /system script add name=telegram-config-global [admin@MikroTik] > /system script edit telegram-config-global source
Write a source code of the script:
#!rsc by ShellHacks # RouterOS script: telegram-config-global # Copyright (c) 2011-2024 www.ShellHacks.com <mail@shellhacks.com> # # Telegram Bot API global settings # Documentation: https://www.shellhacks.com/mikrotik-send-message-to-telegram # Source: https://github.com/shellhacks/MikroTik/blob/main/src/telegram-config-global.rsc # # Tested on RouterOS, version=7.12 (stable) # Version: 1.0.0 # BEGIN SETUP :global tgBotToken "0123456789:ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghi" :global tgChatID "012345678" # END SETUP # Send message to Telegram # Usage: $tgSendMessage $tgChatID "" :global tgSendMessage do={ :global tgBotToken :local url ("https://api.telegram.org/bot$tgBotToken" . "/sendMessage\?chat_id=" . $1 . "&text=" . $2 . "&parse_mode=html") /tool fetch keep-result=no url="$url" }
Press Ctrl + O to save the script and close the editor.
The latest version of this script can be found on GitHub.
Once the script is created you can manually test it as follows:
[admin@MikroTik] > /system script run telegram-config-global [admin@MikroTik] > :environment print - sample output - tgBotToken="0123456789:ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghi" tgChatID="012345678" tgSendMessage={[]; {(evl [/{}] (evl [/global{name=$tgBotToken}]) (evl [/local{name=$url; ... [admin@MikroTik] > $tgSendMessage $tgChatID "Yo!" - sample output - status: finished downloaded: 0KiBC-z pause] total: 0KiB duration: 1s
Finally, it is required to configure this script to run on MikroTik startup using a scheduler.
This is required to keep these variables persistent, since by default they are not saved after reboot:
[admin@MikroTik] > /system scheduler add name=telegram-config-global \ on-event=telegram-config-global \ start-time=startup [admin@MikroTik] > /system scheduler print - sample output - Columns: NAME, START-TIME, INTERVAL, ON-EVENT, RUN-COUNT # NAME START-TIME INTERVAL ON-EVENT RUN-COUNT 0 telegram-config-global startup 0s telegram-config-global 0
To verify if the script is executed on startup and performs its intended function, reboot the MikroTik device and check the global environment variables after:
[admin@MikroTik] > /system reboot ... [admin@MikroTik] > :environment print - sample output - tgBotToken="0123456789:ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghi" tgChatID="012345678" tgSendMessage={[]; {(evl [/{}] (evl [/global{name=$tgBotToken}]) (evl [/local{name=$url; ...
