Arduino Variable Types: Quick Start for Beginners

The concept of an Arduino variable is one of the first things beginners need to understand when programming microcontrollers. Variables store data that your Arduino sketch can use and modify. To declare a variable in Arduino, you must specify its type and name, like int ledPin = 13;. This tells the compiler what kind of data the variable will hold. Choosing the correct Arduino type of variable is important because it affects memory usage and how the data behaves. This guide explains what variables are, how to declare them, and which Arduino variable types are available.

Cool Tip: How to generate random numbers and random delays in Arduino! Read more →

What Is a Variable in Arduino?

A variable is a named space in memory where data is stored. You can change its value during program execution. For example, if you’re reading a sensor, you might store the result in a variable called sensorValue.

How to Declare an Arduino Variable

Use this format:

<type> <variableName> = <value>;

Example:

int temperature = 25;

Here, int is the type, temperature is the name, and 25 is the initial value.

Cool Tip: How to change Vendor ID (VID) and product ID (PID) of the Arduino-based device! Read more →

When to Declare a Variable

Variables should be declared before they are used. You can declare them:

• Globally – at the top of the sketch, outside any function. These are accessible throughout the program.
• Locally – inside a function like setup() or loop(). These exist only while the function runs.

Why Variable Type Matters

Each Arduino type of variable uses a different amount of memory and behaves differently. Using the wrong type can lead to bugs or wasted memory. It’s important to choose the smallest memory type that fits your data – especially on boards like the Arduino Uno, which has only 2 KB of SRAM.

ℹ️ Efficient memory usage helps avoid crashes and keeps your sketch stable.

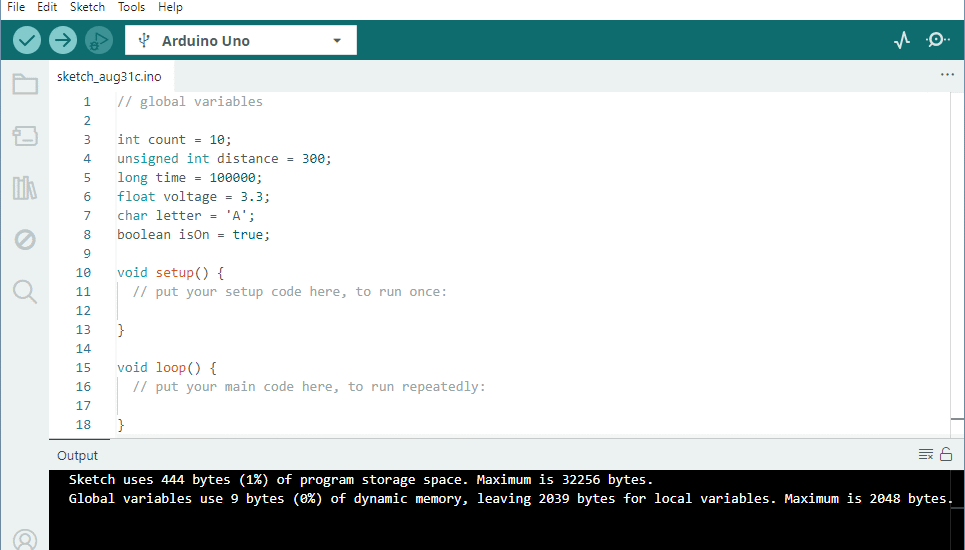

Common Arduino Variable Types

⚠️ Warning: Avoid using long or float unless necessary—they consume twice the memory of int.

If the variable type is incorrect in an Arduino sketch, the user may encounter several types of errors – some during compilation, others during runtime. Here’s a breakdown of what can go wrong:

Common Errors from Incorrect Variable Types

• Compilation error: If the variable is used in a way that doesn’t match its type, the compiler will throw an error like invalid conversion from 'int' to 'char' or cannot convert 'float' to 'boolean'.
• Overflow or underflow: Using a type with a limited range (like byte or int) for large values can cause wraparound. For example, int x = 40000; will overflow since int maxes out at 32,767.
• Unexpected behavior: If you use a float where an int is expected (e.g., in digitalWrite()), the function may not behave correctly even if the code compiles.
• Memory issues: Using large types like long or float unnecessarily can waste SRAM, leading to instability or crashes in larger programs.
• Logical errors: If a boolean is used where a numeric value is needed, the logic may fail silently, producing incorrect results.

ℹ️ Always double-check the expected type for each function and match your variable declaration accordingly.

Conclusion

Understanding how to declare an Arduino variable and choose the right Arduino variable types is essential for writing efficient code. Always match the Arduino type of variable to the kind of data you’re working with. This helps your program run smoothly and saves memory.
